Triple Point Sub-structure

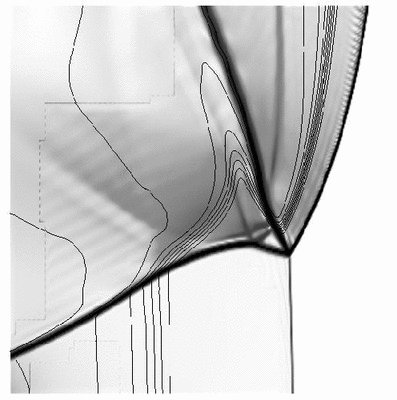

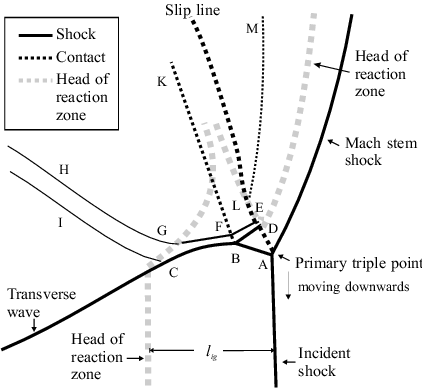

Flow structure around a triple point before the next collision. Isolines of YOH (black) on schlieren plot of u2 (gray). Flow structure around a single triple point before the next collision.
