In a shock tube with length 32.0 and height 5.6 an interface separates
the gases air (density 2.25) at the left side and SF6 (density 4.85) at
the right side. The interface at x = 11.0 is represented by a cosine profile.
Across the interface the pressure is 100. A shock wave driven by a pressure
of 357.12 propagates from x = 9.5 rightwards. The computation has been
carried out on 7 computing nodes. The resolution at the finest level is
3200 x 544.
|

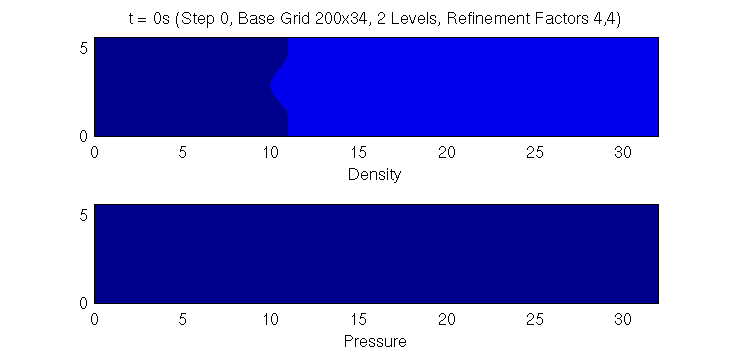

Color plot of
density and pressure (267k)

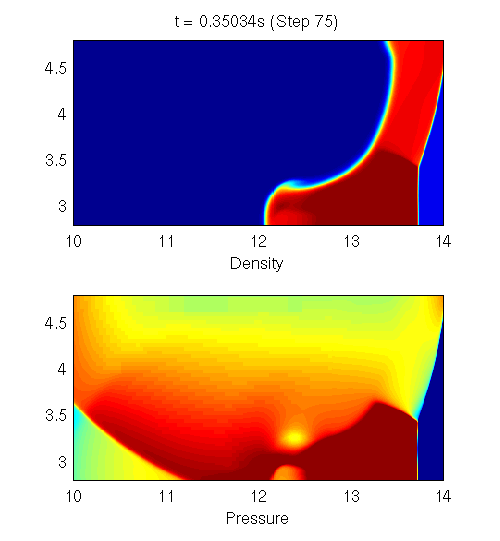

Zoomed color plot
of density and pressure (306k)

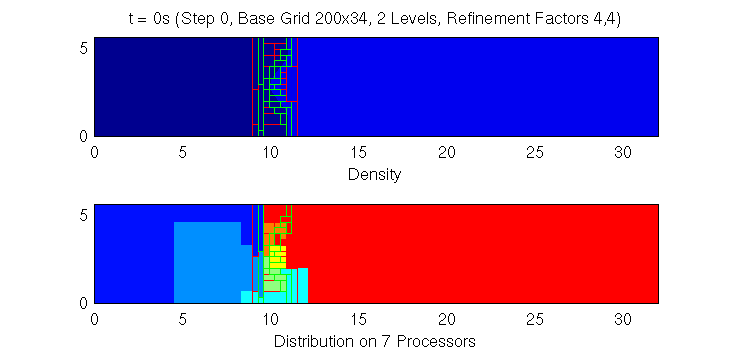

Plot of grids and
distribution on computing nodes (220k)
|
