facet_set_of_cells_iterator Class Template Reference
[Grid Iterators]

Iterator over the facets of a set of cells. More...

#include <facet-by-cell-it.h>

Inheritance diagram for facet_set_of_cells_iterator:

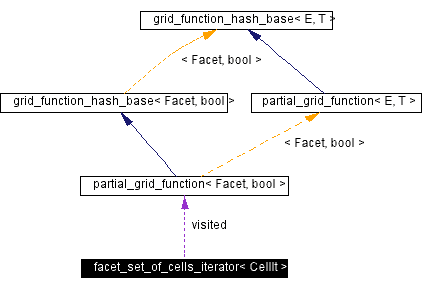

[legend]Collaboration diagram for facet_set_of_cells_iterator:

[legend]List of all members.

Public Types
typedef CellIt::grid_type	grid_type
typedef grid_types< grid_type >	gt
typedef gt::Facet	Facet
typedef gt::Cell	Cell
typedef gt::FacetOnCellIterator	FacetOnCellIterator
typedef CellIt	CellIterator
Public Methods
	facet_set_of_cells_iterator (const CellIterator &c)
self &	operator++ ()
Facet	operator * () const
bool	IsDone () const
grid_type const &	TheGrid () const

---

Detailed Description

template<class CellIt>
class facet_set_of_cells_iterator< CellIt >

Iterator over the facets of a set of cells.

Template parameters:

• CellIt: Model of CellIterator
• CellIt::grid_type: Has Facet and Cell types.
• CellIt::Cell: Model of FacetRange

Implementation note:
This uses a partial grid function to mark visited facets, hence this approach works also with other element types.

Definition at line 29 of file facet-by-cell-it.h.

---

The documentation for this class was generated from the following file:

• Gral/Iterators/facet-by-cell-it.h

---
