## Initial conditions

Analogous to the one-step detonation model, the Euler equations for thermally perfect gas-mixtures with detailed chemical reaction can be solved exactly, if we assume a planar stationary detonation wave propagating with constant speed. For the following simulations we use the planar one-dimensional solution for a H2:O2:Ar Chapman-Jouguet detonation with molar ratios 2:1:7 at

T0=298 K andp0=6.67 kPa orp0=10.0 kPa as initial condition. Forp0=6.67 kPa the detonation is shown in Fig. 3.1. The induction lengthligfor this configuration is approximately 1.4 mm.

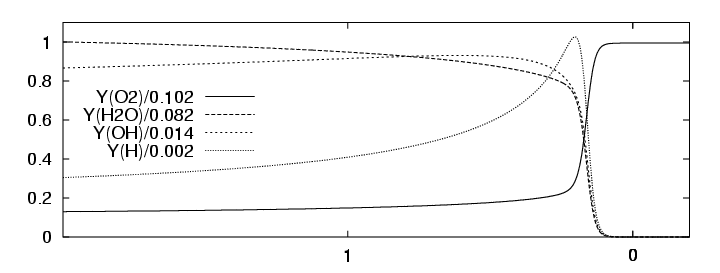

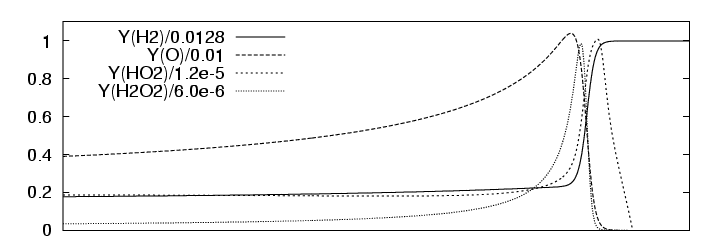

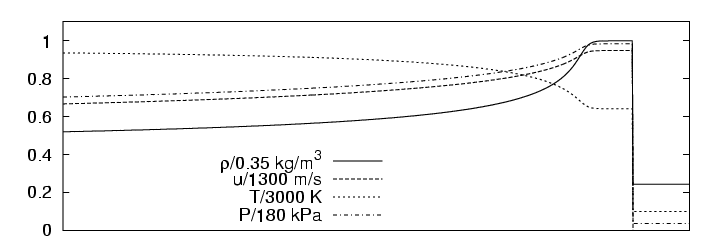

Figure:Detonation structure of a CJ detonation (dCJ= 1627 m/s) of H2:O2:Ar with molar ratios 2:1:7 atT0=298 K andp0=6.67 kPa. The abscissae display the distance behind the detonation front.
