Rayleigh-Taylor Instability

previous

Numerical Simulation    Initial & Boundary Condition

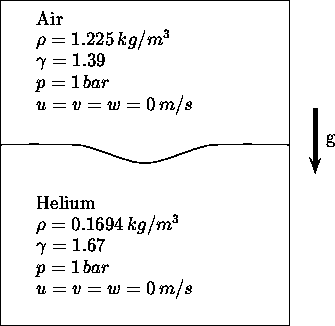

The domain is 2m in x- and y-direction and 3m in z-direction, the direction of the standard gravitational force. The interface between the gases is initially defined by a cylindrical symmetric sine with wavelength 1m and amplitude 5cm. The sine wave smoothly changes to a straight line normal to z at the outer regions.


Mpeg-Movies


Isosurface Plot in 3D (361k)


Reference computation in 2D, color plot of cross section (209k)


Reference computation in 2D, schlieren plot of cross cection in 2D (112k)



The computational domain is doubled for visualization.
