A spere with radius 0.2 is centered at (0.3, 0, 0). The density inside is 0.1, while outside it is 1.0. The pressure is 1.0. From x = 0 a shock wave propagates in x-direction. Behind the wave the pressure is 10. |

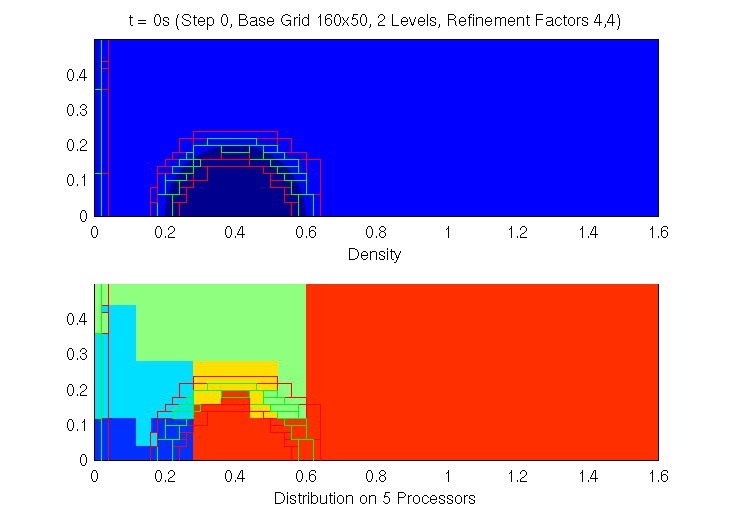

Schlieren plot of density (928k) Plot of grids and distribution on computing nodes (869k) |
