Schwingung einer gespannten Saite mit fixierten Endpunkten
(Waves on a stretched string with fixed ends)
> | restart:with(plots): |
Warning, the name changecoords has been redefined
Solution of wave equation:
> | l := 1; c:=1; |
Spatial solution
> | X[n](x):= sin(n*Pi/l*x);X[m](x):=subs(n=m,X[n](x)): |
Time-dependent solution
> | T[n](t):= (A(n)*cos(n*Pi*c/l*t)+B(n)*sin(n*Pi*c/l*t));u[n](x,t):=T[n](t)*X[n](x): |
Eigenfunction expansion
> | u(x,t):=Sum(u[n](x,t),n=1..infinity); |
Initial conditions
> | u0(x):=x*(1-x); |
> | v(x):=x*(1-x); |

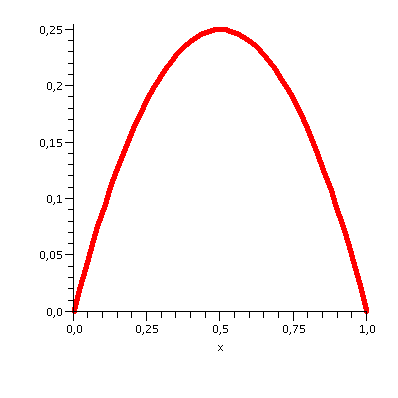

Plot of u0:
> | plot(u0(x) , x=0..l ,thickness=5); |
Evaluation of coefficients for specific ICs
> | A(n):=(2/l)*Int(u0(x)*X[n](x) ,x=0..l);A(n):=expand(value(%)): |
> | A(n):=simplify(subs({sin(n*Pi)=0,cos(n*Pi)=(-1)^n},A(n))); |
> | B(n):=(2/(n*Pi*c))*Int( v(x)*X[n](x),x=0...l);B(n):=expand(value(%)): |
> | B(n):=radsimp(subs({sin(n*Pi)=0,cos(n*Pi)=(-1)^n},%)); |
(Observe convergence of series.)
> | u[n](x,t):=eval(T[n](t)*X[n](x)): |
Series solution
> | u(x,t):=Sum(u[n](x,t),n=1..infinity); |
First few terms of sum
> | u(x,t):=sum(u[n](x,t),n=1..5); |
Animation
> | animate(u(x,t),x=0...l,t=0..20,color=red,thickness=5 , frames=600 ); |
